Mitsubishi FX3U FX3U-32MR-ES Logic Module Without Display, 16 x Input, 16 x Output, 100 → 240 V ac Supply Voltage
- Part Number: FX3U-32MR-ES-A
- PLC Series: FX3U
- Manufacturer: Mitsubishi
- Our part number: FX3U32MRESA
- Number of Digital Inputs: 16
- Input Voltage: 24 VDC Sink/Source
- Number of Digital Outputs: 16
- Output Type: Relay
- Supply Voltage: 100-240 VAC
- Height (mm): 90
- Width (mm): 150
- Depth (mm): 86
- Weight (kg): 0.65
Information about this range
- Expandable compact PLC
- Available as AC or DC powered
- Expandable for up to 384 inputs/outputs
- Available with relay or transistor outputs
- High speed inputs for fast counting tasks
- Three integrated pulse outputs
- LEDs for indicating input & output status
- Integrated serial interface
- A 2nd RS485/422/232 communications interface can be added
- Can be mounted on DIN rail or a flat surface
- Password access protection
- 64,000 step program EEPROM memory
- Slot for memory cassettes
- Integrated real time clock
- Integrated positioning control
- Exchangable interface & I/O adapter boards
- I/O,ADP & special function modules available
- User friendly programming systems
FX3U-32MR/es
FX3U-32MT/es
[Form name]
FX3U-32MR/ES (relay)
FX3U-32MT/ES (tr)
[Power] AC100 ~ 240V
[In]
16 points
DC24V
Sink / source input
5-7 mA
[Output]
16 points
[Relay]
2/1 point (8 A/4 respect)
AC250V
DC30V
[Tr]
ES, DS: sink
ESS, DSS: source
0.5/1 point (0.8 A/4 point)
DC5 to 30 V
General specifications
Ambient temperature 0 ~ 55 ° C work... time... save 25-75 ° C at
... Work for relative humidity 5-95% RH (non-condensing):
Vibration (DIN-rail installation)
[Frequency: 10-57 Hz, single amplitude: 0.035 mm X, Y, Z directions 10 times (total 80 minutes each)
[Frequency: 57-150 Hz, acceleration:4.9m/s 2 X, Y, Z directions 10 times (total 80 minutes each)
Vibration (direct installation)
[Frequency: 10-57 Hz, single amplitude:0.075mm X, Y, Z directions 10 times (total 80 minutes each)
[Frequency: 57-150 Hz, acceleration:9.8m/s 2 X, Y, Z directions 10 times (total 80 minutes each)
147 m / s 2 shock interaction time 11 ms half-sine pulse at X, Y, Z directions three times.
Bearing noise noise voltage 1000 Vp-p noise width 1 µ s rise by 30-100 Hz Simulator 1 ns
Withstand voltage AC 1500 V for one minute, or AC 500 V for 1 minute (each terminal and earth ground)
[Resistance] DC 500 V Megger (terminals and grounding terminals) Ω more than 5 m.
[Ground] D class grounding (less than 100 Ω) q electrical system and common ground is not allowed. Dedicated ground or common ground and see. 〉
Conductive dust (dust) is not severe, but [atmospheres, corrosive and flammable gas
Use elevation 2000 m below
| | Manufacturer Series | FX3U Series |
| | Supply Voltage | 100 → 240 V ac |
| | Output Type | Relay |
| | Number of Outputs | 16 |
| | Number of Inputs | 16 |
| | Input Type | Sink/Source |
| | Display Included | No |
| | For Use With | MELSEC FX3U Series |
| | Expansion Available | Yes |
| | Output Current | 8 A |
| | Mounting Type | DIN Rail |
| | Scan Time | 0.065 μs |
| | Maximum Operating Temperature | +50°C |
| | Length | 150mm |
| | Depth | 86mm |
| | Programming Language Used | Ladder Logic |
| | Programming Interface | Computer, HMI |
| | Operating Mode | Program, Run |
| | Total Memory Available | 64000 Steps |
| | Width | 90mm |
| | Program Capacity | 64000 Steps |
| | Minimum Operating Temperature | 0°C |
Shenzhen Hunt Electronics Co., Ltd.Always be here offer you the best price and good after-sales services.
Our advantage range:
1. Mitsubishi A,Q,L, FX-series PLC;
2. Mitsubishi Frequency Inverter FR-A700, FR-E700, FR-F700, FR-D700-series.
3. Mitsubishi HMI(Human Machine Interface) GT16, GT15, GT12, GT10,GT20-series
4. Mitsubishi servo drive J4, J3, J2S,JE series
FAQ:
1. Q: Does all products are original?
Yes, we dealed are all brand new and original products.
2. Q: How about the warranty?
We supply 1 year warranty
3. Q: What about delivery time?
Normally 1-3days
4. Q: How about the payment term?
T/T, Western union are welcome
Contact us:
Company name: Shenzhen Hunt Electronics co., Ltd.
Website: http://www.hunt-plc.com
TEL: 0086-755-21002862
Skype: nicole.tang_7
Email: nicole@huntplc.com
|
|

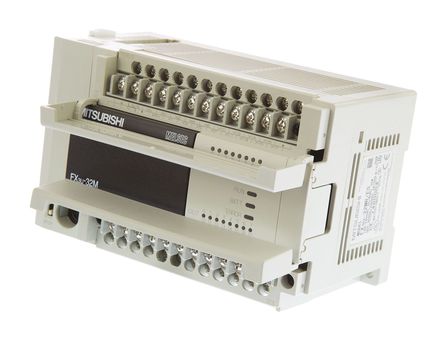

Mitsubishi FX3U FX3U-32MR-ES Logic Module Without Display, 16 x Input, 16 x Output, 100 → 240 V ac Supply Voltage Images
|
